mi::base::ILogger Class Referenceabstract

The ILogger interface class supports logging of messages. More...

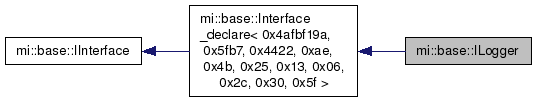

Inheritance diagram for mi::base::ILogger:
Inheritance graph
[legend]

Public Types

typedef Interface_declare< id1,
id2, id3, id4, id5, id6, id7,
id8, id9, id10, id11,
IInterface
Self
  Own type. More...

typedef Uuid_t< id1, id2, id3,
id4, id5, id6, id7, id8, id9,
id10, id11 >
IID
  Declares the interface ID (IID) of this interface. More...


Public Member Functions

virtual void  message (Message_severity level, const char *module_category, const char *message)=0
  Emits a message to the application's log. More...

void  printf (Message_severity level, const char *module_category, const char *message,...) __attribute__((format(printf
  Emits a message to the application's log. More...

virtual Uint32  retain () const =0
  Increments the reference count. More...

virtual Uint32  release () const =0
  Decrements the reference count. More...

virtual const IInterface get_interface (const Uuid &interface_id) const =0
  Acquires a const interface from another. More...

template<class T >
const T *  get_interface () const
  Acquires a const interface from another. More...

virtual IInterface get_interface (const Uuid &interface_id)=0
  Acquires a mutable interface from another. More...

template<class T >
T *  get_interface ()
  Acquires a mutable interface from another. More...

virtual Uuid  get_iid () const =0
  Returns the interface ID of the most derived interface. More...


Static Public Member Functions

static bool  compare_iid (const Uuid &iid)
  Compares the interface ID iid against the interface ID of this interface and of its ancestors. More...


Detailed Description

The ILogger interface class supports logging of messages.

Plugins based on mi::base::Plugin are provided with a logger, such that plugins can be written to use the same message log as the host application.

Different APIs allow to register your own implementation of a logger to override their internal implementation. Note that in such case the object implementing this interface shall not be created on the stack, since this might lead to premature destruction of such instances while still being in use by the API.

The following message categories are used in some APIs. There might be other, undocumented categories.

category purpose
"DATABASE" database
"DISK" raw disk I/O, swapping
"GEOMETRY" geometry processing, e.g., tessellation
"IMAGE" texture processing, image and video plugins
"IO" scene data import and export
"MAIN" reserved for the application itself
"MISC" other
"MEMORY" memory management
"NETWORK" networking
"PLUGIN" plugins (unless other categories fit better)
"RENDER" rendering

Member Typedef Documentation

typedef Uuid_t<id1,id2,id3,id4,id5,id6,id7,id8,id9,id10,id11> mi::base::Interface_declare< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11, IInterface >::IID
inherited

Declares the interface ID (IID) of this interface.

typedef Interface_declare<id1,id2,id3,id4,id5,id6,id7,id8,id9,id10,id11,IInterface > mi::base::Interface_declare< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11, IInterface >::Self
inherited

Own type.

Member Function Documentation

static bool mi::base::Interface_declare< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11, IInterface >::compare_iid ( const Uuid iid)
inlinestaticinherited

Compares the interface ID iid against the interface ID of this interface and of its ancestors.

Returns
true if iid == IID() or is equal to one of the interface IDs of its ancestors, and false otherwise.
virtual Uuid mi::base::IInterface::get_iid ( ) const
pure virtualinherited

Returns the interface ID of the most derived interface.

Implemented in mi::base::Interface_implement_singleton< IAllocator >.

virtual const IInterface* mi::base::IInterface::get_interface ( const Uuid interface_id) const
pure virtualinherited

Acquires a const interface from another.

If this interface supports the interface with the passed interface_id, then the method returns a non-NULL const mi::base::IInterface* that can be casted via static_cast to an interface pointer of the interface type corresponding to the passed interface_id. Otherwise, the method returns NULL.

In the case of a non-NULL return value, the caller receives ownership of the new interface pointer, whose reference count has been retained once. The caller must release the returned interface pointer at the end to prevent a memory leak.

Parameters
interface_id Interface ID of the interface to acquire.

Implemented in mi::base::Interface_implement_singleton< IAllocator >.

template<class T >
const T* mi::base::IInterface::get_interface ( ) const
inlineinherited

Acquires a const interface from another.

If this interface supports the interface T, then the method returns a non-NULL const pointer to the interface T. Otherwise, the method returns NULL.

In the case of a non-NULL return value, the caller receives ownership of the new interface pointer, whose reference count has been retained once. The caller must release the returned interface pointer at the end to prevent a memory leak.

This templated member function is a wrapper of the non-template variant for the user's convenience. It eliminates the need to apply static_cast to the returned pointer, since the return type already is a const pointer to the type T specified as template parameter.

Template Parameters
T The requested interface type.
virtual IInterface* mi::base::IInterface::get_interface ( const Uuid interface_id)
pure virtualinherited

Acquires a mutable interface from another.

If this interface supports the interface with the passed interface_id, then the methods returns a non-NULL mi::base::IInterface* that can be casted via static_cast to an interface pointer of the interface type corresponding to the passed interface_id. Otherwise, the method returns NULL.

In the case of a non-NULL return value, the caller receives ownership of the new interface pointer, whose reference count has been retained once. The caller must release the returned interface pointer at the end to prevent a memory leak.

Parameters
interface_id Interface ID of the interface to acquire.

Implemented in mi::base::Interface_implement_singleton< IAllocator >.

template<class T >
T* mi::base::IInterface::get_interface ( )
inlineinherited

Acquires a mutable interface from another.

If this interface supports the interface T, then the method returns a non-NULL pointer to the interface T. Otherwise, the method returns NULL.

In the case of a non-NULL return value, the caller receives ownership of the new interface pointer, whose reference count has been retained once. The caller must release the returned interface pointer at the end to prevent a memory leak.

This templated member function is a wrapper of the non-template variant for the user's convenience. It eliminates the need to apply static_cast to the returned pointer, since the return type already is a pointer to the type T specified as template parameter.

Template Parameters
T The requested interface type.
virtual void mi::base::ILogger::message ( Message_severity  level,
const char *  module_category,
const char *  message
)
pure virtual

Emits a message to the application's log.

The application can decide to output the message to any channel or to drop it.

This function can be called at any time from any thread, including concurrent calls from several threads at the same time.

Note
Log messages with severity mi::base::MESSAGE_SEVERITY_FATAL terminate the process after the log message has been delivered. This severity should only be used in exceptional cases.
Parameters
level The log level which specifies the severity of the message.
module_category The module and the category which specify the origin and the functional area of this message. The format of string parameter is "module:category". Both names are optional. The module name must not contain any colons. See above for valid category names.
message The log message.
void mi::base::ILogger::printf ( Message_severity  level,
const char *  module_category,
const char *  message,
  ...
)
inline

Emits a message to the application's log.

The application can decide to output the message to any channel or to drop it.

This function can be called at any time from any thread, including concurrent calls from several threads at the same time.

Note
Log messages with severity mi::base::MESSAGE_SEVERITY_FATAL terminate the process after the log message has been delivered. This severity should only be used in exceptional cases.
Parameters
level The log level which specifies the severity of the message.
module_category The module and the category which specify the origin and the functional area of this message. The format of string parameter is "module:category". Both names are optional. The module name must not contain any colons. See above for valid category names.
message The log message using printf()-like format specifiers, followed by matching arguments. The formatted message is limited to 1024 characters.
virtual Uint32 mi::base::IInterface::release ( ) const
pure virtualinherited

Decrements the reference count.

Decrements the reference count of the object referenced through this interface and returns the new reference count. If the reference count dropped to zero, the object will be deleted. The operation is thread-safe.

Returns
The new, decremented reference count.

Implemented in mi::base::Interface_implement_singleton< IAllocator >.

virtual Uint32 mi::base::IInterface::retain ( ) const
pure virtualinherited

Increments the reference count.

Increments the reference count of the object referenced through this interface and returns the new reference count. The operation is thread-safe.

Returns
The new, incremented reference count.

Implemented in mi::base::Interface_implement_singleton< IAllocator >.
