This interfaces represents a function definition. More...

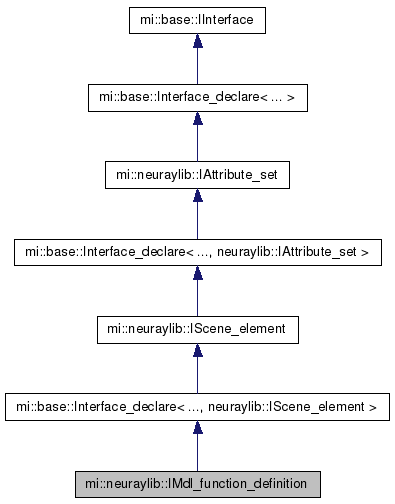

Inheritance diagram for mi::neuraylib::IMdl_function_definition:

[legend]

Public Member Functions
virtual const char *	get_module () const =0
	Returns the DB name of the module containing this function definition. More...

virtual const char *	get_name () const =0
	Returns the MDL name of the function definition. More...

virtual bool	is_exported () const =0
	Indicates whether the function definition is exported by its module. More...

virtual const char *	get_return_type () const =0
	Returns the return type. More...

virtual bool	is_return_type_varying () const =0
	Indicates whether the return type is varying. More...

virtual Uint32	get_parameter_count () const =0
	Returns the number of parameters. More...

virtual const char *	get_parameter_name (Uint32 index) const =0
	Returns the name of the parameter at `index`. More...

virtual Sint32	get_parameter_index (const char *name) const =0
	Returns the index position of a parameter. More...

virtual const char *	get_parameter_type (Uint32 index) const =0
	Returns the type of the parameter at `index`. More...

virtual const char *	get_parameter_type (const char *name) const =0
	Returns the type of a parameter. More...

virtual bool	is_parameter_type_uniform (Uint32 index) const =0
	Indicates whether the type of a parameter is uniform. More...

virtual bool	is_parameter_type_uniform (const char *name) const =0
	Indicates whether the type of a parameter is uniform. More...

virtual const char *	get_argument_type (Uint32 index) const =0
	Returns the type of the argument at `index`. More...

virtual const char *	get_argument_type (const char *name) const =0
	Returns the type of an argument. More...

virtual const IAttachable *	get_default (Uint32 index) const =0
	Returns the default initializer of the parameter at `index`. More...

template<class T >
const T *	get_default (Uint32 index) const
	Returns the default initializer of the parameter at `index`. More...

virtual const IAttachable *	get_default (const char *name) const =0
	Returns the default initializer of a parameter. More...

template<class T >
const T *	get_default (const char *name) const
	Returns the default initializer of a parameter. More...

virtual const IAttribute_container *	get_annotations () const =0
	Returns the annotations of this function definition. More...

virtual const IAttribute_container *	get_return_annotations () const =0
	Returns the annotations of the return type of this function definition. More...

virtual const IAttribute_container *	get_parameter_annotations (Uint32 index) const =0
	Returns the annotations of the parameter at `index`. More...

virtual const IAttribute_container *	get_parameter_annotations (const char *name) const =0
	Returns the annotations of a parameter. More...

virtual IMdl_function_call *	create_function_call (const IAttribute_container arguments, Sint32 errors=0) const =0
	Creates a new function call. More...

Additional Inherited Members
Public Types inherited from mi::base::Interface_declare< 0x0a8d2440, 0x0b1f, 0x4424, 0x87, 0xad, 0x50, 0xe1, 0x20, 0x8e, 0x62, 0x39, neuraylib::IScene_element >
typedef Interface_declare< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11, neuraylib::IScene_element >	Self
	Own type. More...

typedef Uuid_t< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11 >	IID
	Declares the interface ID (IID) of this interface. More...

Static Public Member Functions inherited from mi::base::Interface_declare< 0x0a8d2440, 0x0b1f, 0x4424, 0x87, 0xad, 0x50, 0xe1, 0x20, 0x8e, 0x62, 0x39, neuraylib::IScene_element >
static bool	compare_iid (const Uuid &iid)
	Compares the interface ID `iid` against the interface ID of this interface and of its ancestors. More...

Detailed Description

This interfaces represents a function definition.

A function definition describes the formal structure of a function call, i.e. the number, types, names, and defaults of its parameters, as well as its return type. The create_function_call() method allows to create function calls based on this function definition.

See Also: mi::neuraylib::IMdl_function_call, mi::neuraylib::IMdl_module, mi::neuraylib::Mdl_definition_wrapper

Member Function Documentation

virtual IMdl_function_call* mi::neuraylib::IMdl_function_definition::create_function_call	(	const IAttribute_container *	arguments,
		Sint32 *	errors = `0`
	)		const

pure virtual

Creates a new function call.

Parameters

	arguments	The arguments of the created function call. Arguments for parameters without default initializer are mandatory, otherwise optional. The type of an attribute in the attribute container must match the required type for the argument of that name (see get_argument_type()). Any argument not set by an attribute in the attribute container will be set to the default initializer of the corresponding parameter. Note that the values in `arguments` are copied; passing an attribute container obtained from another MDL interface does not create a link between both instances. `NULL` is a valid argument which is handled like an empty attribute container.
[out]	errors	An optional pointer to an mi::Sint32 to which an error code will be written. The error codes have the following meaning: 0: Success. -1: An argument for a non-existing parameter was provided in `arguments`. -2: The type of an argument in `arguments` does not have the correct type, see get_argument_type(). -3: A parameter that has no default initializer was not provided with an argument value. -4: The definition can not be instantiated because it is not exported.

Returns: The created material instance, or NULL in case of errors.

virtual const IAttribute_container* mi::neuraylib::IMdl_function_definition::get_annotations ( ) const

pure virtual

Returns the annotations of this function definition.

Returns: The function annotations.

virtual const char* mi::neuraylib::IMdl_function_definition::get_argument_type ( Uint32 index) const

pure virtual

Returns the type of the argument at index.

The type of a given argument is an attachable of the corresponding parameter type. For example, if get_parameter_type() returns "Sint32", this method returns "Attachable<Sint32>".

If a literal 0 is passed for index, the call is ambiguous. You need to explicitly cast the value to mi::Uint32.

Parameters

index The index of the argument.

Returns: The argument type, or NULL if index is out of range.

virtual const char* mi::neuraylib::IMdl_function_definition::get_argument_type ( const char * name) const

pure virtual

Returns the type of an argument.

The type of a given argument is an attachable of the corresponding parameter type. For example, if get_parameter_type() returns "Sint32", this method returns "Attachable<Sint32>".

Parameters

name	The name of the argument.

Returns: The argument type, or NULL if name is invalid.

virtual const IAttachable* mi::neuraylib::IMdl_function_definition::get_default ( Uint32 index) const

pure virtual

Returns the default initializer of the parameter at index.

If a literal 0 is passed for index, the call is ambiguous. You need to explicitly cast the value to mi::Uint32.

Parameters

index The index of the parameter.

Returns: The default initializer, or NULL if index is out of range or if there is no default initializer.

template<class T >

const T* mi::neuraylib::IMdl_function_definition::get_default ( Uint32 index) const

inline

Returns the default initializer of the parameter at index.

If a literal 0 is passed for index, the call is ambiguous. You need to explicitly cast the value to mi::Uint32.

This templated member function is a wrapper of the non-template variant for the user's convenience. It eliminates the need to call mi::base::IInterface::get_interface(const Uuid &) on the returned pointer, since the return type already is a pointer to the type T specified as template parameter.

Template Parameters

T	The interface type of the requested element

Parameters

index The index of the parameter.

Returns: The default initializer, or NULL if index is out of range or if there is no default initializer.

virtual const IAttachable* mi::neuraylib::IMdl_function_definition::get_default ( const char * name) const

pure virtual

Returns the default initializer of a parameter.

Parameters

name	The name of the parameter.

Returns: The default initializer, or NULL if name is invalid or if there is no default initializer.

template<class T >

const T* mi::neuraylib::IMdl_function_definition::get_default ( const char * name) const

inline

Returns the default initializer of a parameter.

This templated member function is a wrapper of the non-template variant for the user's convenience. It eliminates the need to call mi::base::IInterface::get_interface(const Uuid &) on the returned pointer, since the return type already is a pointer to the type T specified as template parameter.

Template Parameters

T	The interface type of the requested element

Parameters

name	The name of the parameter.

Returns: The default initializer, or NULL if name is invalid or if there is no default initializer.

virtual const char* mi::neuraylib::IMdl_function_definition::get_module ( ) const

pure virtual

Returns the DB name of the module containing this function definition.

The type of the module is mi::neuraylib::IMdl_module.

Returns: The DB name of the module containing the function definition.

virtual const char* mi::neuraylib::IMdl_function_definition::get_name ( ) const

pure virtual

Returns the MDL name of the function definition.

Note: The MDL name of the function definition is different from the name of the DB element. Use mi::neuraylib::ITransaction::name_of()to obtain the name of the DB element.

Returns: The MDL name of the function definition.

virtual const IAttribute_container* mi::neuraylib::IMdl_function_definition::get_parameter_annotations ( Uint32 index) const

pure virtual

Returns the annotations of the parameter at index.

If a literal 0 is passed for index, the call is ambiguous. You need to explicitly cast the value to mi::Uint32.

Parameters

index The index of the parameter.

Returns: The parameter annotations, or NULL if index is out of range.

virtual const IAttribute_container* mi::neuraylib::IMdl_function_definition::get_parameter_annotations ( const char * name) const

pure virtual

Returns the annotations of a parameter.

Parameters

name	The name of the parameter.

Returns: The parameter annotations, or NULL if name is invalid.

virtual Uint32 mi::neuraylib::IMdl_function_definition::get_parameter_count ( ) const

pure virtual

Returns the number of parameters.

Returns: The number of parameters.

virtual Sint32 mi::neuraylib::IMdl_function_definition::get_parameter_index ( const char * name) const

pure virtual

Returns the index position of a parameter.

Parameters

name	The name of the parameter.

Returns: The index of the parameter, or -1 if name is invalid.

virtual const char* mi::neuraylib::IMdl_function_definition::get_parameter_name ( Uint32 index) const

pure virtual

Returns the name of the parameter at index.

Parameters

index The index of the parameter.

Returns: The name of the parameter, or NULL if index is out of range.

virtual const char* mi::neuraylib::IMdl_function_definition::get_parameter_type ( Uint32 index) const

pure virtual

Returns the type of the parameter at index.

If a literal 0 is passed for index, the call is ambiguous. You need to explicitly cast the value to mi::Uint32.

Parameters

index The index of the parameter.

Returns: The parameter type, or NULL if index is out of range.

virtual const char* mi::neuraylib::IMdl_function_definition::get_parameter_type ( const char * name) const

pure virtual

Returns the type of a parameter.

Parameters

name	The name of the parameter.

Returns: The parameter type, or NULL if name is invalid.

virtual const IAttribute_container* mi::neuraylib::IMdl_function_definition::get_return_annotations ( ) const

pure virtual

Returns the annotations of the return type of this function definition.

Returns: The return type annotations.

virtual const char* mi::neuraylib::IMdl_function_definition::get_return_type ( ) const

pure virtual

Returns the return type.

Returns: The return type.

virtual bool mi::neuraylib::IMdl_function_definition::is_exported ( ) const

pure virtual

Indicates whether the function definition is exported by its module.

virtual bool mi::neuraylib::IMdl_function_definition::is_parameter_type_uniform ( Uint32 index) const

pure virtual

Indicates whether the type of a parameter is uniform.

Parameters

index The index of the parameter.

Returns: true if the parameter is uniform, otherwise false (including invalid index).

virtual bool mi::neuraylib::IMdl_function_definition::is_parameter_type_uniform ( const char * name) const

pure virtual

Indicates whether the type of a parameter is uniform.

Parameters

name	The name of the parameter.

Returns: true if the parameter is uniform, otherwise false (including invalid name).

virtual bool mi::neuraylib::IMdl_function_definition::is_return_type_varying ( ) const

pure virtual

Indicates whether the return type is varying.

Returns: true if the return type is varying, otherwise false.
