A group is a container for other scene elements. More...
Public Member Functions | |
virtual Uint32 | get_length () const =0 |
Returns the number of elements. More... |
|
virtual const char * | get_element (Uint32 index) const =0 |
Returns the name of the element index . More... |
|
virtual Sint32 | attach (const char *scene_element)=0 |
Attaches a scene element to the group. More... |
|
virtual Sint32 | detach (const char *scene_element)=0 |
Detaches a scene element from the group. More... |
|
virtual void | clear ()=0 |
Removes all elements in the array of grouped elements. More... |
|

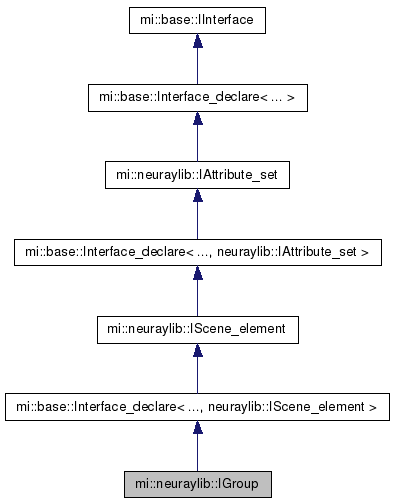

Additional Inherited Members | |
Public Types inherited from mi::base::Interface_declare< 0x3b26d1b4, 0x4aa8, 0x4876, 0xad, 0x7c, 0x4a, 0xaa, 0xd9, 0x25, 0x0d, 0xce, neuraylib::IScene_element > | |
typedef Interface_declare< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11, neuraylib::IScene_element > |
Self |
Own type. More... |
|
typedef Uuid_t< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11 > |
IID |
Declares the interface ID (IID) of this interface. More... |
|
Static Public Member Functions inherited from mi::base::Interface_declare< 0x3b26d1b4, 0x4aa8, 0x4876, 0xad, 0x7c, 0x4a, 0xaa, 0xd9, 0x25, 0x0d, 0xce, neuraylib::IScene_element > | |
static bool | compare_iid (const Uuid &iid) |
Compares the interface ID iid against the interface ID of this interface and of its ancestors. More... |
|
A group is a container for other scene elements.
Groups are typically used to structure the scene elements. Groups can be nested and thus can be used to create a hierarchy of scene elements. Typically, groups are used together with instances, either as group of instances or instance of a group. However, any scene element can be part of a group.
The root node of the scene graph is given by a top-level group (called root group).
The order of elements in a group does not matter.
|
pure virtual |
Attaches a scene element to the group.
Adding an element that is already in the group is an undefined operation.
scene_element | The element to attach. |
NULL
pointer).
|
pure virtual |
Removes all elements in the array of grouped elements.
|
pure virtual |
Detaches a scene element from the group.
Removing an element that is not in the group has no effect. The detached element is not changed or deleted.
scene_element | The element to detach. |
NULL
pointer).
|
pure virtual |
Returns the name of the element index
.
NULL
if index
is out of bounds.
|
pure virtual |
Returns the number of elements.
