Onshape PartnerRealityServer for Onshape

Onshape is the first and only full-cloud 3D CAD system that lets everyone on a design team simultaneously work together using a web browser, phone or tablet. We are pleased to partner with Onshape to offer our RealityServer cloud based rendering technology to its users, allowing a complete end to end workflow, from concept to final rendering, entirely in the cloud on any connected device and unlike local rendering solutions you don’t need expensive hardware to get started in rendering with RealityServer for Onshape.

F1

PERRINN F1 Modelled in Onshape Rendered in RealityServer with NVIDIA Iray

Onshape is the first industrial strength, cloud based CAD solution that migenius has felt is powerful and professional enough to integrate RealityServer with and offer directly ourselves. The advent of the Onshape App Store has provided migenius with the opportunity to offer Onshape users easy access to RealityServer, which generally was available only to software developers. The RealityServer for Onshape application provides an end user solution that any Onshape user can use.

Details and Features

Seamless Integration

The cloud-first nature of RealityServer makes it perfect for direct integration in Onshape. You simply add the RealityServer application to your Onshape document and it appears as a new tab. Nothing to install or manage locally and you can immediately access multiple high end NVIDIA GPU devices to perform your rendering with RealityServer’s built in NVIDIA Iray rendering technology.

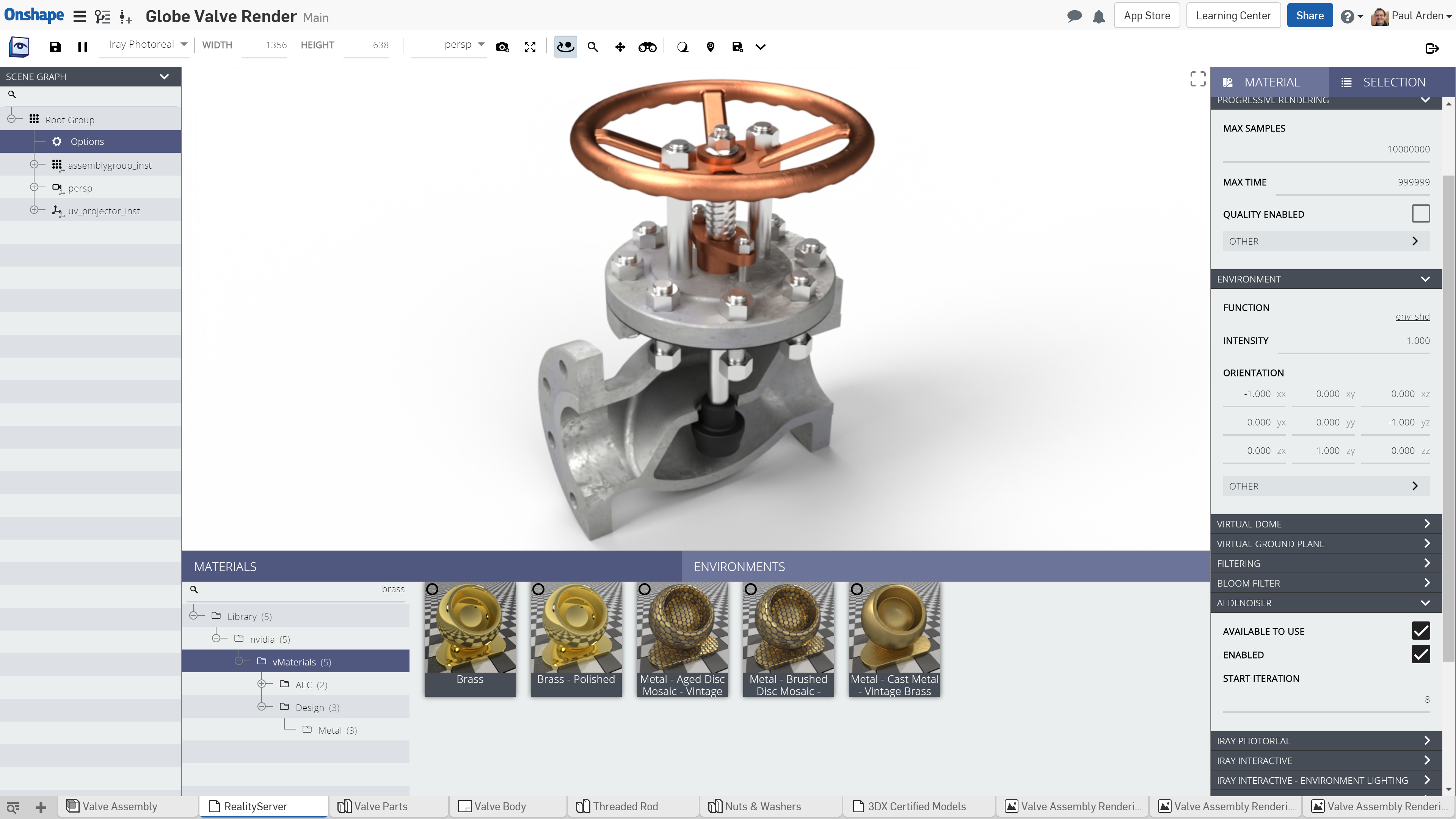

RealityServer Onshape Integration (Click to Enlarge)



P1001A_Bevel_Gear_Assembly_Anim



Rendering Tools You Need

Currently features in the RealityServer application include:

  • Tightly integrated app, nothing else to sign up for
  • Physically accurate photorealistic rendering in the cloud
  • Dedicated rendering servers with high end GPU hardware
  • Artificial Intelligence based Denoising
  • Library of over 1400 high quality pre-defined materials
  • Over 100 HDRI environments to illuminate your scene
  • Automatic UV mapping for easy texture mapping
  • Create highly detailed custom materials with NVIDIA MDL
  • Upload your own texture maps and HDRI environments</li
  • Reconvert and update your model while keeping materials
  • Render at any size or quality
  • Various natural and artificial lighting configurations
  • Easy to use interface



We will be adding more features over time. As RealityServer uses Iray for rendering all of the features available in Iray will potentially be exposed. We’d love to hear what you want to see most.

NVIDIA Iray Rendering Technology

RealityServer is built on NVIDIA Iray® a photorealistic, physically based rendering solution that utilises the processing power of GPU hardware to greatly accelerate rendering. Because it is physically based you get great results without tuning strange settings and you can even perform accurate lighting simulations.

RealityServer Onshape application offers both the Iray Photoreal rendering mode as well as the Iray Interactive mode for faster renders where absolute quality isn’t necessary. Materials are based on the NVIDIA Material Definition Language (MDL) and in the future you will be able to use your own MDL materials directly with RealityServer for Onshape. However you can already use existing MDL building blocks to create your own complex material graphs.

Hydraulic Grab

Fast Results with Iray Rendering (Click to Enlarge)

Concrete Bucket

Rendered Entirely in the Cloud (Click to Enlarge)

Server and Resource Management

When you add RealityServer to your Onshape document you will be take to a page where you can manage your GPU server resources and select the model you want to convert along with the tessellation settings to use. We don’t skimp on hardware, you get a dedicated high end NVIDIA GPU server to run your rendering on.

Because we provide dedicated rather than shared resources, you are responsible for starting and stopping your own server through the RealityServer application. If you haven’t used your server for 5 minutes we will shut it down for you to avoid extra charges. Servers take less than a minute to start and we are working to reduce that time even further.

Available Now!

RealityServer for Onshape is now available in the Onshape App Store. Click the badge below go to the Onshape App Store and check it out and subscribe for free access.

OnshapeAppStoreBadge

We will be adding features progressively over time as we evaluate our customers requirements. The free subscription provides 2 free hours of rendering per month with additional hours available to purchase as needed.

You will be allocated a dedicated Tesla M40 (24GB) GPU server while rendering. If you are interested in using RealityServer for Onshape for exporting content to NVIDIA Iray Viewer or for use in RealityServer on your own server please contact us for more information.
