This interface represents a function call. More...

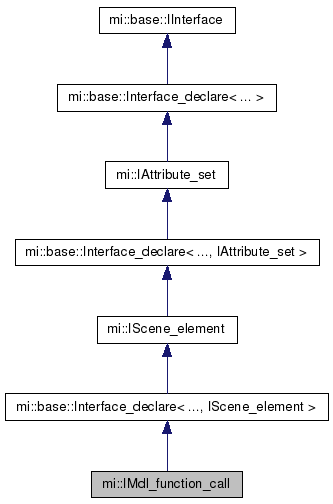

Inheritance diagram for mi::IMdl_function_call:

[legend]

Public Member Functions
virtual const char *	get_function_definition () const =0
	Returns the DB name of the corresponding function definition. More...

virtual const char *	get_name () const =0
	Returns the MDL name of the corresponding function definition. More...

virtual const char *	get_return_type () const =0
	Returns the return type. More...

virtual bool	is_return_type_varying () const =0
	Indicates whether the return type is varying. More...

virtual Uint32	get_parameter_count () const =0
	Returns the number of parameters. More...

virtual const char *	get_parameter_name (Uint32 index) const =0
	Returns the name of the parameter at `index`. More...

virtual Sint32	get_parameter_index (const char *name) const =0
	Returns the index position of a parameter. More...

virtual const char *	get_parameter_type (Uint32 index) const =0
	Returns the type of the parameter at `index`. More...

virtual const char *	get_parameter_type (const char *name) const =0
	Returns the type of a parameter. More...

virtual bool	is_parameter_type_uniform (Uint32 index) const =0
	Indicates whether the type of a parameter is uniform. More...

virtual bool	is_parameter_type_uniform (const char *name) const =0
	Indicates whether the type of a parameter is uniform. More...

virtual const char *	get_argument_type (Uint32 index) const =0
	Returns the type of the argument at `index`. More...

virtual const char *	get_argument_type (const char *name) const =0
	Returns the type of an argument. More...

virtual const IAttachable *	get_argument (Uint32 index) const =0
	Returns the argument at `index`. More...

template<class T >
const T *	get_argument (Uint32 index) const
	Returns the argument at `index`. More...

virtual const IAttachable *	get_argument (const char *name) const =0
	Returns the argument for a parameter. More...

template<class T >
const T *	get_argument (const char *name) const
	Returns the argument for a parameter. More...

virtual Sint32	set_argument (Uint32 index, const IAttachable *value)=0
	Sets the argument at `index`. More...

virtual Sint32	set_argument (const char name, const IAttachable value)=0
	Sets the argument for a parameter. More...

virtual const IAttribute_container *	access_arguments () const =0
	Returns the arguments of all parameters. More...

virtual Sint32	set_arguments (const IAttribute_container *arguments)=0
	Sets the arguments of multiple parameters. More...

Additional Inherited Members
Public Types inherited from mi::base::Interface_declare< 0x308bcfb7, 0x6abc, 0x44cd, 0xb2, 0xdc, 0x0c, 0x88, 0x44, 0x0f, 0x9e, 0x32, IScene_element >
typedef Interface_declare< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11, IScene_element >	Self
	Own type. More...

typedef Uuid_t< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11 >	IID
	Declares the interface ID (IID) of this interface. More...

Static Public Member Functions inherited from mi::base::Interface_declare< 0x308bcfb7, 0x6abc, 0x44cd, 0xb2, 0xdc, 0x0c, 0x88, 0x44, 0x0f, 0x9e, 0x32, IScene_element >
static bool	compare_iid (const Uuid &iid)
	Compares the interface ID `iid` against the interface ID of this interface and of its ancestors. More...

Detailed Description

This interface represents a function call.

A function call is an instance of a formal function definition, with a fixed set of arguments (possibly the defaults of the function definition). Function calls can be created from function definitions using mi::IMdl_function_definition::create_function_call().

See Also: mi::IMdl_function_definition, mi::Mdl_argument_editor

Member Function Documentation

virtual const IAttribute_container* mi::IMdl_function_call::access_arguments ( ) const

pure virtual

Returns the arguments of all parameters.

Returns: The arguments.

virtual const IAttachable* mi::IMdl_function_call::get_argument ( Uint32 index) const

pure virtual

Returns the argument at index.

Note: The method mi::neuraylib::IFactory::clone() is useful to obtain a mutable pointer to (a clone of) the argument.

If a literal 0 is passed for index, the call is ambiguous. You need to explicitly cast the value to mi::Uint32.

Parameters

index The index of the argument.

Returns: The argument, or NULL if index is out of range.

template<class T >

const T* mi::IMdl_function_call::get_argument ( Uint32 index) const

inline

Returns the argument at index.

Note: The method mi::neuraylib::IFactory::clone() is useful to obtain a mutable pointer to (a clone of) the argument.

If a literal 0 is passed for index, the call is ambiguous. You need to explicitly cast the value to mi::Uint32.

This templated member function is a wrapper of the non-template variant for the user's convenience. It eliminates the need to call mi::base::IInterface::get_interface(const Uuid &) on the returned pointer, since the return type already is a pointer to the type T specified as template parameter.

Template Parameters

T	The interface type of the requested element

Parameters

index The index of the argument.

Returns: The argument, or NULL if index is out of range.

virtual const IAttachable* mi::IMdl_function_call::get_argument ( const char * name) const

pure virtual

Returns the argument for a parameter.

Note: The method mi::neuraylib::IFactory::clone() is useful to obtain a mutable pointer to (a clone of) the argument.

Parameters

name	The name of the parameter.

Returns: The argument, or NULL if name is invalid.

template<class T >

const T* mi::IMdl_function_call::get_argument ( const char * name) const

inline

Returns the argument for a parameter.

Note: The method mi::neuraylib::IFactory::clone() is useful to obtain a mutable pointer to (a clone of) the argument.

This templated member function is a wrapper of the non-template variant for the user's convenience. It eliminates the need to call mi::base::IInterface::get_interface(const Uuid &) on the returned pointer, since the return type already is a pointer to the type T specified as template parameter.

Template Parameters

T	The interface type of the requested element

Parameters

name	The name of the parameter.

Returns: The argument, or NULL if name is invalid.

virtual const char* mi::IMdl_function_call::get_argument_type ( Uint32 index) const

pure virtual

Returns the type of the argument at index.

The type of a given argument is an attachable of the corresponding parameter type. For example, if get_parameter_type() returns "Sint32", this method returns "Attachable<Sint32>".

If a literal 0 is passed for index, the call is ambiguous. You need to explicitly cast the value to mi::Uint32.

Parameters

index The index of the argument.

Returns: The argument type, or NULL if index is out of range.

virtual const char* mi::IMdl_function_call::get_argument_type ( const char * name) const

pure virtual

Returns the type of an argument.

The type of a given argument is an attachable of the corresponding parameter type. For example, if get_parameter_type() returns "Sint32", this method returns "Attachable<Sint32>".

Parameters

name	The name of the argument.

Returns: The argument type, or NULL if name is invalid.

virtual const char* mi::IMdl_function_call::get_function_definition ( ) const

pure virtual

Returns the DB name of the corresponding function definition.

The type of the function definition is mi::IMdl_function_definition.

Returns: The DB name of the function definition.

virtual const char* mi::IMdl_function_call::get_name ( ) const

pure virtual

Returns the MDL name of the corresponding function definition.

Note: The MDL name of the function definition is different from the name of the DB element. Use mi::neuraylib::ITransaction::name_of()to obtain the name of the DB element.

Returns: The MDL name of the function definition.

virtual Uint32 mi::IMdl_function_call::get_parameter_count ( ) const

pure virtual

Returns the number of parameters.

Returns: The number of function parameters.

virtual Sint32 mi::IMdl_function_call::get_parameter_index ( const char * name) const

pure virtual

Returns the index position of a parameter.

Parameters

name	The name of the parameter.

Returns: The index of the parameter, or -1 if name is invalid.

virtual const char* mi::IMdl_function_call::get_parameter_name ( Uint32 index) const

pure virtual

Returns the name of the parameter at index.

Parameters

index The index of the parameter.

Returns: The name of the parameter, or NULL if index is out of range.

virtual const char* mi::IMdl_function_call::get_parameter_type ( Uint32 index) const

pure virtual

Returns the type of the parameter at index.

If a literal 0 is passed for index, the call is ambiguous. You need to explicitly cast the value to mi::Uint32.

Parameters

index The index of the parameter.

Returns: The parameter type, or NULL if index is out of range.

virtual const char* mi::IMdl_function_call::get_parameter_type ( const char * name) const

pure virtual

Returns the type of a parameter.

Parameters

name	The name of the parameter.

Returns: The parameter type, or NULL if name is invalid.

virtual const char* mi::IMdl_function_call::get_return_type ( ) const

pure virtual

Returns the return type.

Returns: The return type of the function.

virtual bool mi::IMdl_function_call::is_parameter_type_uniform ( Uint32 index) const

pure virtual

Indicates whether the type of a parameter is uniform.

Parameters

index The index of the parameter.

Returns: true if the parameter is uniform, otherwise false (including invalid index).

virtual bool mi::IMdl_function_call::is_parameter_type_uniform ( const char * name) const

pure virtual

Indicates whether the type of a parameter is uniform.

Parameters

name	The name of the parameter.

Returns: true if the parameter is uniform, otherwise false (including invalid name).

virtual bool mi::IMdl_function_call::is_return_type_varying ( ) const

pure virtual

Indicates whether the return type is varying.

Returns: true if the return type is varying, otherwise false.

virtual Sint32 mi::IMdl_function_call::set_argument	(	Uint32	index,
		const IAttachable *	value
	)

pure virtual

Sets the argument at index.

Parameters

index	The index of the argument.
value	The argument. Note that the value is copied; passing a value obtained from another MDL interface does not create a link between both instances.

Returns

0: Success.
-1: Invalid parameters (NULL pointer).
-2: Parameter index does not exist.
-3: Type of parameter does not match.
-4: The function call is immutable (because it appears in a default of a function or material definition).
-5: The parameter type is uniform, but the attachment has a varying return type.

virtual Sint32 mi::IMdl_function_call::set_argument	(	const char *	name,
		const IAttachable *	value
	)

pure virtual

Sets the argument for a parameter.

Parameters

name	The name of the parameter.
value	The argument. Note that the value is copied; passing a value obtained from another MDL interface does not create a link between both instances.

Returns

0: Success.
-1: Invalid parameters (NULL pointer).
-2: Parameter name does not exist.
-3: Type of parameter does not match.
-4: The function call is immutable (because it appears in a default of a function or material definition).
-5: The parameter type is uniform, but the attachment has a varying return type.

virtual Sint32 mi::IMdl_function_call::set_arguments ( const IAttribute_container * arguments)

pure virtual

Sets the arguments of multiple parameters.

Parameters

arguments The arguments. Note that the values are copied; passing an attribute container obtained from another MDL interface does not create a link between both instances.

Returns

0: Success.
-1: Invalid parameters (NULL pointer).
-2: One of the parameters in arguments does not exist.
-3: The type of one of the parameters does not match.
-4: The function call is immutable (because it appears in a default of a function or material definition).
-5: The parameter type is uniform, but the attachment has a varying return type.
