Irradiance probes are used to render the irradiance at certain locations in the scene. More...
Public Member Functions | |
| virtual void | set_length (Size size)=0 |
| Sets the number of probes,. More... |
|
| virtual Size | get_length () const =0 |
| Returns the number of probes. More... |
|
| virtual Sint32 | set_probe (Size index, const Float32_3_struct &position, const Float32_3_struct &normal)=0 |
Sets the probe data for the probe at index. More... |
|
| virtual Sint32 | get_probe (Size index, Float32_3_struct &position, Float32_3_struct &normal) const =0 |
Returns the probe data for the probe at index. More... |
|

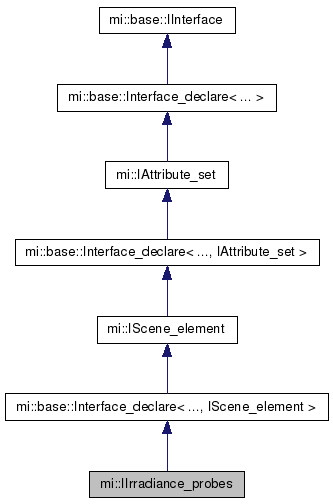

Additional Inherited Members | |
 Public Types inherited from mi::base::Interface_declare< 0x566166f0, 0x6df2, 0x4131, 0xa1, 0xfe, 0xe6, 0x45, 0x74, 0x5f, 0xb4, 0xc1, IScene_element >
| |
| typedef Interface_declare< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11, IScene_element > |
Self |
| Own type. More... |
|
| typedef Uuid_t< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11 > |
IID |
| Declares the interface ID (IID) of this interface. More... |
|
|
Static Public Member Functions inherited from mi::base::Interface_declare< 0x566166f0, 0x6df2, 0x4131, 0xa1, 0xfe, 0xe6, 0x45, 0x74, 0x5f, 0xb4, 0xc1, IScene_element >
| |
| static bool | compare_iid (const Uuid &iid) |
Compares the interface ID iid against the interface ID of this interface and of its ancestors. More... |
|
Irradiance probes are used to render the irradiance at certain locations in the scene.
Rendering of irradiance probes is different from the usual rendering of buffers, like for example "result" or "normal". In particular, the orientation of the camera is irrelevant. Instead, locations of so-called irradiance probes are explicitly specified by this scene element which is attached to the camera (see mi::ICamera::set_irradiance_probes()).
To actually render the irradiance using these irradiance probes the render target needs to contain a canvas named "irradiance_probe" with pixel type "Rgb_fp". The product of the canvas resolution in x and y direction needs to match the number of irradiance probes. The irradiance probes are mapped to the canvas pixels in row-major order.
|
pure virtual |
Returns the number of probes.
|
pure virtual |
Returns the probe data for the probe at index.
| index | The probe to be queried. | |
| [out] | position | The position of the probe. |
| [out] | normal | The normal of the probe. |
index is out of bounds.
|
pure virtual |
Sets the number of probes,.
Newly created elements are default-initialized.
|
pure virtual |
Sets the probe data for the probe at index.
| index | The probe to be modified. |
| position | The new position of the probe. |
| normal | The new normal of the probe. |
index is out of bounds.
