This interface represents the result of an import operation. More...

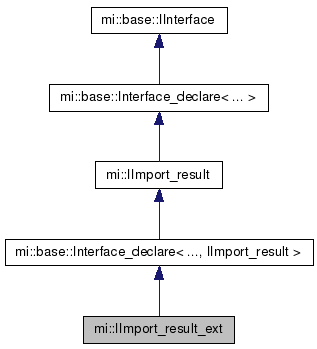

Inheritance diagram for mi::IImport_result_ext:

[legend]

Public Member Functions
virtual Sint32	set_rootgroup (const char *group)=0
	Sets the name of the root group. More...

virtual Sint32	set_camera_inst (const char *camera)=0
	Sets the name of the camera instance. More...

virtual Sint32	set_options (const char *options)=0
	Sets the name of the options. More...

virtual Sint32	element_push_back (const char *element)=0
	Appends an element to the array of recorded elements. More...

virtual Sint32	set_element (Size index, const char *element)=0
	Replaces an element in the array of recorded elements. More...

virtual void	clear_elements ()=0
	Removes all elements. More...

virtual Sint32	set_message (Uint32 number, base::Message_severity severity, const char *message)=0
	Replaces all messages by the given message number, severity, and message. More...

virtual Sint32	message_push_back (Uint32 number, base::Message_severity severity, const char *message)=0
	Appends a message number, severity, and message to the array of recorded message numbers, severities, and messages. More...

virtual Sint32	set_message (Size index, Uint32 number, base::Message_severity severity, const char *message)=0
	Replaces a message number, severity, and message in the array of recorded message numbers, severities, and messages. More...

virtual void	clear_messages ()=0
	Removes all messages. More...

virtual Sint32	append_elements (const IImport_result *import_result)=0
	Appends all elements in `import_result` to this instance. More...

virtual Sint32	append_messages (const IImport_result *import_result)=0
	Appends all messages in `import_result` to this instance. More...

Additional Inherited Members
Public Types inherited from mi::base::Interface_declare< 0xe43ae7a3, 0x7816, 0x4915, 0xb1, 0x98, 0x42, 0x12, 0x1d, 0x1b, 0xe2, 0x09, IImport_result >
typedef Interface_declare< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11, IImport_result >	Self
	Own type. More...

typedef Uuid_t< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11 >	IID
	Declares the interface ID (IID) of this interface. More...

Static Public Member Functions inherited from mi::base::Interface_declare< 0xe43ae7a3, 0x7816, 0x4915, 0xb1, 0x98, 0x42, 0x12, 0x1d, 0x1b, 0xe2, 0x09, IImport_result >
static bool	compare_iid (const Uuid &iid)
	Compares the interface ID `iid` against the interface ID of this interface and of its ancestors. More...

Detailed Description

This interface represents the result of an import operation.

It is derived from the mi::IImport_result interface and is intended to be used by importer writers. In addition to the mi::IImport_result interface it provides methods to set all values.

See mi::neuraylib::IImport_api::import_elements() for common message numbers. Numbers in the range 4000-5999 are reserved for importer-specific messages. All other numbers are reserved for other purposes.

Note: In case of a successful Import operation the array of messages should not contain an explicit message with message number 0. If there are no other importer-specific messages, messages, the message array should then just be empty, such that mi::IImport_result::get_error_number() returns 0 and mi::IImport_result::get_error_message() returns NULL.

Member Function Documentation

virtual Sint32 mi::IImport_result_ext::append_elements ( const IImport_result * import_result)

pure virtual

Appends all elements in import_result to this instance.

Returns

0: Success.
-1: Invalid parameters (NULL pointer).

virtual Sint32 mi::IImport_result_ext::append_messages ( const IImport_result * import_result)

pure virtual

Appends all messages in import_result to this instance.

Returns

0: Success.
-1: Invalid parameters (NULL pointer).

virtual void mi::IImport_result_ext::clear_elements ( )

pure virtual

Removes all elements.

virtual void mi::IImport_result_ext::clear_messages ( )

pure virtual

Removes all messages.

virtual Sint32 mi::IImport_result_ext::element_push_back ( const char * element)

pure virtual

Appends an element to the array of recorded elements.

Parameters

element The name of the element to append.

Returns

0: Success.
-1: Invalid parameters (NULL pointer).

virtual Sint32 mi::IImport_result_ext::message_push_back	(	Uint32	number,
		base::Message_severity	severity,
		const char *	message
	)

pure virtual

Appends a message number, severity, and message to the array of recorded message numbers, severities, and messages.

Parameters

number	The message number to append.
severity	The message severity to append.
message	The message to append.

Returns

0: Success.
-1: Invalid parameters (NULL pointer).

See Also: mi::IImport_result_ext for valid message numbers

virtual Sint32 mi::IImport_result_ext::set_camera_inst ( const char * camera)

pure virtual

Sets the name of the camera instance.

Returns

0: Success.
-1: Invalid parameters (NULL pointer).

virtual Sint32 mi::IImport_result_ext::set_element	(	Size	index,
		const char *	element
	)

pure virtual

Replaces an element in the array of recorded elements.

The operation is skipped if index is out of bounds.

Parameters

index	The index of the element to be replaced.
element	The name of the element element to be replaced.

Returns

0: Success.
-1: Invalid parameters (NULL pointer).
-2: index is out of bounds.

virtual Sint32 mi::IImport_result_ext::set_message	(	Uint32	number,
		base::Message_severity	severity,
		const char *	message
	)

pure virtual

Replaces all messages by the given message number, severity, and message.

Equivalent to clear_messages(), followed by message_push_back().

Returns

0: Success.
-1: Invalid parameters (NULL pointer).

See Also: mi::IImport_result_ext for valid message numbers

virtual Sint32 mi::IImport_result_ext::set_message	(	Size	index,
		Uint32	number,
		base::Message_severity	severity,
		const char *	message
	)

pure virtual

Replaces a message number, severity, and message in the array of recorded message numbers, severities, and messages.

Parameters

index	The index of the message to be replaced.
number	The message number to append.
severity	The message severity to append.
message	The message to append.

Returns

0: Success.
-1: Invalid parameters (NULL pointer).
-2: index is out of bounds.

See Also: mi::IImport_result_ext for valid message numbers

virtual Sint32 mi::IImport_result_ext::set_options ( const char * options)

pure virtual

Sets the name of the options.

Returns

0: Success.
-1: Invalid parameters (NULL pointer).

virtual Sint32 mi::IImport_result_ext::set_rootgroup ( const char * group)

pure virtual

Sets the name of the root group.

Returns

0: Success.
-1: Invalid parameters (NULL pointer).
