This interface represents simple numeric types. More...

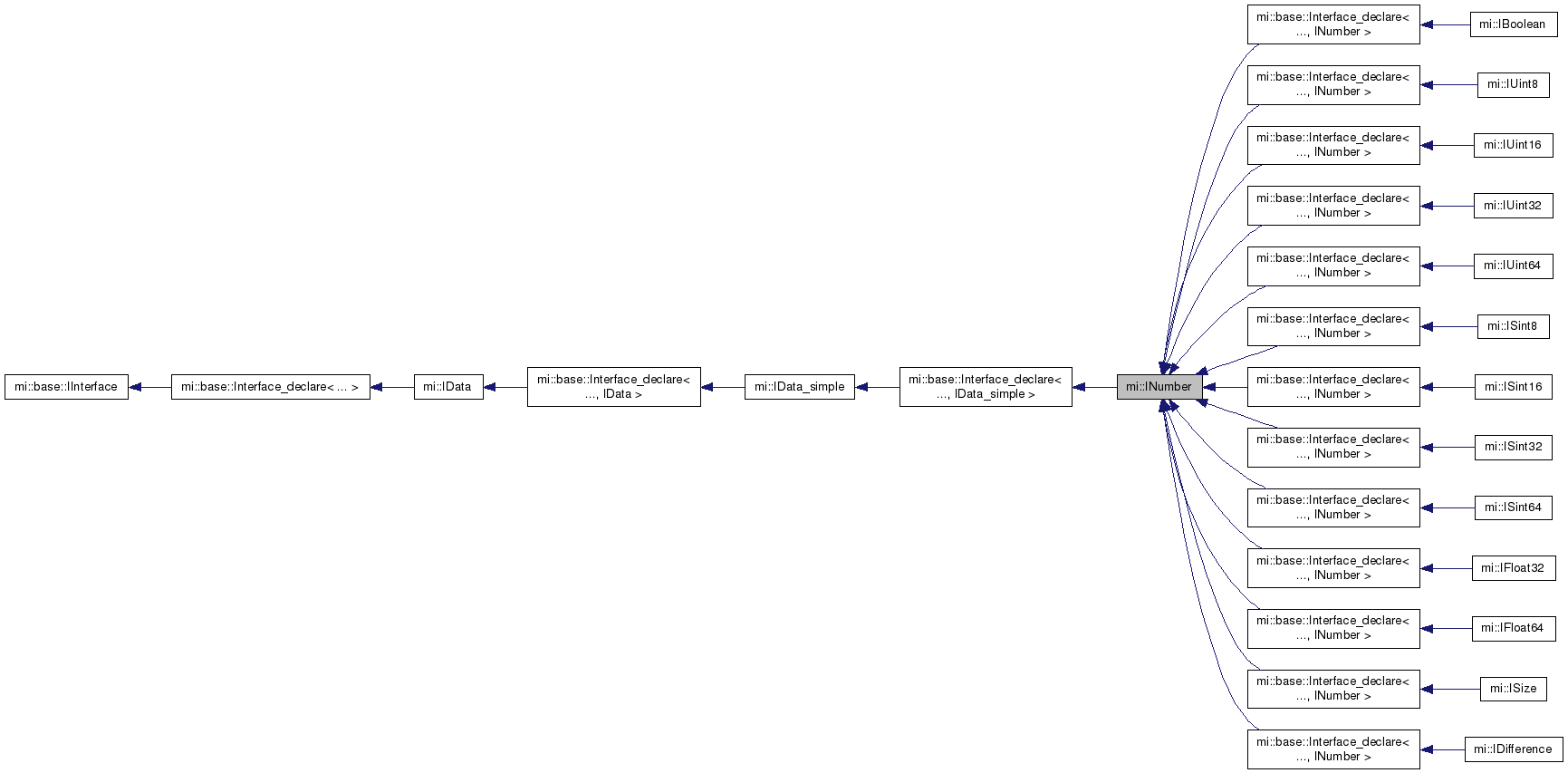

Inheritance diagram for mi::INumber:

[legend]

Public Member Functions
virtual void	get_value (bool &val) const =0
	Returns the value of the object as bool. More...

virtual void	set_value (bool val)=0
	Sets the value of the object via a parameter of type bool. More...

virtual void	get_value (Uint8 &val) const =0
	Returns the value of the object as mi::Uint8. More...

virtual void	set_value (Uint8 val)=0
	Sets the value of the object via a parameter of type mi::Uint8. More...

virtual void	get_value (Uint16 &val) const =0
	Returns the value of the object as mi::Uint16. More...

virtual void	set_value (Uint16 val)=0
	Sets the value of the object via a parameter of type mi::Uint16. More...

virtual void	get_value (Uint32 &val) const =0
	Returns the value of the object as mi::Uint32. More...

virtual void	set_value (Uint32 val)=0
	Sets the value of the object via a parameter of type mi::Uint32. More...

virtual void	get_value (Uint64 &val) const =0
	Returns the value of the object as mi::Uint64. More...

virtual void	set_value (Uint64 val)=0
	Sets the value of the object via a parameter of type mi::Uint64. More...

virtual void	get_value (Sint8 &val) const =0
	Returns the value of the object as mi::Sint8. More...

virtual void	set_value (Sint8 val)=0
	Sets the value of the object via a parameter of type mi::Sint8. More...

virtual void	get_value (Sint16 &val) const =0
	Returns the value of the object as mi::Sint16. More...

virtual void	set_value (Sint16 val)=0
	Sets the value of the object via a parameter of type mi::Sint16. More...

virtual void	get_value (Sint32 &val) const =0
	Returns the value of the object as mi::Sint32. More...

virtual void	set_value (Sint32 val)=0
	Sets the value of the object via a parameter of type mi::Sint32. More...

virtual void	get_value (Sint64 &val) const =0
	Returns the value of the object as mi::Sint64. More...

virtual void	set_value (Sint64 val)=0
	Sets the value of the object via a parameter of type mi::Sint64. More...

virtual void	get_value (Float32 &val) const =0
	Returns the value of the object as mi::Float32. More...

virtual void	set_value (Float32 val)=0
	Sets the value of the object via a parameter of type mi::Float32. More...

virtual void	get_value (Float64 &val) const =0
	Returns the value of the object as mi::Float64. More...

virtual void	set_value (Float64 val)=0
	Sets the value of the object via a parameter of type mi::Float64. More...

template<class T >
T	get_value () const
	Returns the value of the object. More...

Additional Inherited Members
Public Types inherited from mi::base::Interface_declare< 0x07366a82, 0x3d0c, 0x46e9, 0x88, 0x0e, 0xed, 0x65, 0xba, 0xde, 0xef, 0x2b, IData_simple >
typedef Interface_declare< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11, IData_simple >	Self
	Own type. More...

typedef Uuid_t< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11 >	IID
	Declares the interface ID (IID) of this interface. More...

Static Public Member Functions inherited from mi::base::Interface_declare< 0x07366a82, 0x3d0c, 0x46e9, 0x88, 0x0e, 0xed, 0x65, 0xba, 0xde, 0xef, 0x2b, IData_simple >
static bool	compare_iid (const Uuid &iid)
	Compares the interface ID `iid` against the interface ID of this interface and of its ancestors. More...

Detailed Description

This interface represents simple numeric types.

The methods get_value() and set_value() are overloaded for the various numeric types. If necessary a conversion as defined by the C/C++ standard is performed.

Member Function Documentation

virtual void mi::INumber::get_value ( bool & val) const

pure virtual

Returns the value of the object as bool.

virtual void mi::INumber::get_value ( Uint8 & val) const

pure virtual

Returns the value of the object as mi::Uint8.

virtual void mi::INumber::get_value ( Uint16 & val) const

pure virtual

Returns the value of the object as mi::Uint16.

virtual void mi::INumber::get_value ( Uint32 & val) const

pure virtual

Returns the value of the object as mi::Uint32.

virtual void mi::INumber::get_value ( Uint64 & val) const

pure virtual

Returns the value of the object as mi::Uint64.

virtual void mi::INumber::get_value ( Sint8 & val) const

pure virtual

Returns the value of the object as mi::Sint8.

virtual void mi::INumber::get_value ( Sint16 & val) const

pure virtual

Returns the value of the object as mi::Sint16.

virtual void mi::INumber::get_value ( Sint32 & val) const

pure virtual

Returns the value of the object as mi::Sint32.

virtual void mi::INumber::get_value ( Sint64 & val) const

pure virtual

Returns the value of the object as mi::Sint64.

virtual void mi::INumber::get_value ( Float32 & val) const

pure virtual

Returns the value of the object as mi::Float32.

virtual void mi::INumber::get_value ( Float64 & val) const

pure virtual

Returns the value of the object as mi::Float64.

template<class T >

T mi::INumber::get_value ( ) const

inline

Returns the value of the object.

The type of the object represented by the interface is indicated by the template parameter.

This templated member function is a wrapper of the other functions of the same name for the user's convenience. It allows you to write

mi::Uint32 x = ivalue->get_value<mi::Uint32>();

instead of

mi::Uint32 x;

ivalue->get_value( x)

virtual void mi::INumber::set_value ( bool val)

pure virtual

Sets the value of the object via a parameter of type bool.

virtual void mi::INumber::set_value ( Uint8 val)

pure virtual

Sets the value of the object via a parameter of type mi::Uint8.

virtual void mi::INumber::set_value ( Uint16 val)

pure virtual

Sets the value of the object via a parameter of type mi::Uint16.

virtual void mi::INumber::set_value ( Uint32 val)

pure virtual

Sets the value of the object via a parameter of type mi::Uint32.

virtual void mi::INumber::set_value ( Uint64 val)

pure virtual

Sets the value of the object via a parameter of type mi::Uint64.

virtual void mi::INumber::set_value ( Sint8 val)

pure virtual

Sets the value of the object via a parameter of type mi::Sint8.

virtual void mi::INumber::set_value ( Sint16 val)

pure virtual

Sets the value of the object via a parameter of type mi::Sint16.

virtual void mi::INumber::set_value ( Sint32 val)

pure virtual

Sets the value of the object via a parameter of type mi::Sint32.

virtual void mi::INumber::set_value ( Sint64 val)

pure virtual

Sets the value of the object via a parameter of type mi::Sint64.

virtual void mi::INumber::set_value ( Float32 val)

pure virtual

Sets the value of the object via a parameter of type mi::Float32.

virtual void mi::INumber::set_value ( Float64 val)

pure virtual

Sets the value of the object via a parameter of type mi::Float64.
