This interface represents RGB colors. More...

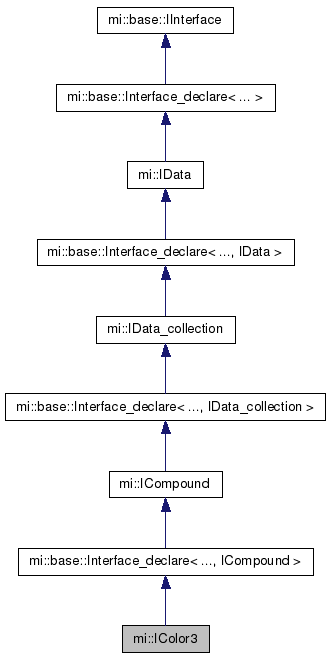

Inheritance diagram for mi::IColor3:

[legend]

Public Member Functions
virtual Color_struct	get_value () const =0
	Returns the color represented by this interface. More...

virtual void	get_value (Color_struct &value) const =0
	Returns the color represented by this interface. More...

virtual void	set_value (const Color_struct &value)=0
	Sets the color represented by this interface. More...

Additional Inherited Members
Public Types inherited from mi::base::Interface_declare< 0x1189e839, 0x6d86, 0x4bac, 0xbc, 0x72, 0xb0, 0xc0, 0x2d, 0xa9, 0x3c, 0x6c, ICompound >
typedef Interface_declare< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11, ICompound >	Self
	Own type. More...

typedef Uuid_t< id1, id2, id3, id4, id5, id6, id7, id8, id9, id10, id11 >	IID
	Declares the interface ID (IID) of this interface. More...

Static Public Member Functions inherited from mi::base::Interface_declare< 0x1189e839, 0x6d86, 0x4bac, 0xbc, 0x72, 0xb0, 0xc0, 0x2d, 0xa9, 0x3c, 0x6c, ICompound >
static bool	compare_iid (const Uuid &iid)
	Compares the interface ID `iid` against the interface ID of this interface and of its ancestors. More...

Detailed Description

This interface represents RGB colors.

It can be used to represent colors by an interface derived from mi::base::IInterface.

Member Function Documentation

virtual Color_struct mi::IColor3::get_value ( ) const

pure virtual

Returns the color represented by this interface.

The alpha component of the return value is set to 1.0.

virtual void mi::IColor3::get_value ( Color_struct & value) const

pure virtual

Returns the color represented by this interface.

The alpha component of value is set to 1.0.

virtual void mi::IColor3::set_value ( const Color_struct & value)

pure virtual

Sets the color represented by this interface.

The alpha component of value is ignored.
