neuray API Programmer's Manual

mi::neuraylib::IMdl_function_call Class Reference

[Materials (MDL)]

Description

This interface represents a function call. A function call is an instance of a formal function definition, with a fixed set of arguments (possibly the defaults of the function definition). Function calls can be created from function definitions using mi::neuraylib::IMdl_function_definition::create_function_call().

See also:

mi::neuraylib::IMdl_function_definition

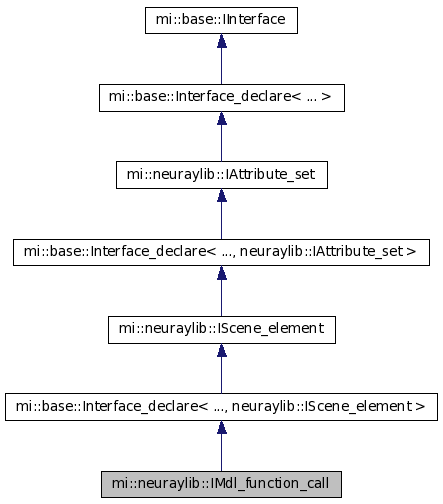

mi::base::Interface_declare\< ..., neuraylib::IScene_element \>Mixin class template for deriving new interface declarations. Common base interface for all scene elements.Common base interface for all scene elements. mi::base::Interface_declare\< ..., neuraylib::IAttribute_set \>Mixin class template for deriving new interface declarations. The attribute set comprises all attributes attached to a database element.The attribute set comprises all attributes attached to a database element. mi::base::Interface_declare\< ... \>Mixin class template for deriving new interface declarations. The basic extensible interface.The basic extensible interface.

Public Member Functions

virtual const IAttribute_container* access_arguments() const =0
Returns the arguments of all parameters. More...
virtual const IAttachable* get_argument( Uint32 index) const =0
Returns the argument at index. More...
template< class T>const T* get_argument( Uint32 index) const
Returns the argument at index. More...
virtual const IAttachable* get_argument( const char* name) const =0
Returns the argument for a parameter. More...
template< class T>const T* get_argument( const char* name) const
Returns the argument for a parameter. More...
virtual const char* get_argument_type( Uint32 index) const =0
Returns the type of the argument at index. More...
virtual const char* get_argument_type( const char* name) const =0
Returns the type of an argument. More...
virtual const char* get_function_definition() const =0
Returns the DB name of the corresponding function definition. More...
virtual const char* get_name() const =0
Returns the MDL name of the corresponding function definition. More...
virtual Uint32 get_parameter_count() const =0
Returns the number of parameters. More...
virtual Sint32 get_parameter_index( const char* name) const =0
Returns the index position of a parameter. More...
virtual const char* get_parameter_name( Uint32 index) const =0
Returns the name of the parameter at index. More...
virtual const char* get_parameter_type( Uint32 index) const =0
Returns the type of the parameter at index. More...
virtual const char* get_parameter_type( const char* name) const =0
Returns the type of a parameter. More...
virtual const char* get_return_type() const =0
Returns the return type. More...
virtual bool  is_parameter_type_uniform( Uint32 index) const =0
Indicates whether the type of a parameter is uniform. More...
virtual bool  is_parameter_type_uniform( const char* name) const =0
Indicates whether the type of a parameter is uniform. More...
virtual bool  is_return_type_varying() const =0
Indicates whether the return type is varying. More...
virtual Sint32 set_argument( Uint32 index, const IAttachable* value) =0
Sets the argument at index. More...
virtual Sint32 set_argument( const char* name, const IAttachable* value) =0
Sets the argument for a parameter. More...
virtual Sint32 set_arguments( const IAttribute_container* arguments) =0
Sets the arguments of multiple parameters. More...

Member Functions

virtual const IAttribute_container* mi::​neuraylib::​IMdl_function_call::access_arguments() const [pure virtual]

Returns the arguments of all parameters.

Returns

The arguments.

virtual const IAttachable* mi::​neuraylib::​IMdl_function_call::get_argument( Uint32 index) const [pure virtual]

Returns the argument at index.

Note:

The method mi::neuraylib::IFactory::clone() is useful to obtain a mutable pointer to (a clone of) the argument.

If a literal 0 is passed for index, the call is ambiguous. You need to explicitly cast the value to mi::Uint32.

Parameters

index
The index of the argument.

Returns

The argument, or NULL if index is out of range.

template< class T>

const T* mi::​neuraylib::​IMdl_function_call::get_argument( Uint32 index) const [inline]

Returns the argument at index.

Note:

The method mi::neuraylib::IFactory::clone() is useful to obtain a mutable pointer to (a clone of) the argument.

If a literal 0 is passed for index, the call is ambiguous. You need to explicitly cast the value to mi::Uint32.

This templated member function is a wrapper of the non-template variant for the user's convenience. It eliminates the need to call mi::base::IInterface::get_interface( const Uuid &) on the returned pointer, since the return type already is a pointer to the type T specified as template parameter.

Parameters

index
The index of the argument.

Returns

The argument, or NULL if index is out of range.

virtual const IAttachable* mi::​neuraylib::​IMdl_function_call::get_argument( const char* name) const [pure virtual]

Returns the argument for a parameter.

Note:

The method mi::neuraylib::IFactory::clone() is useful to obtain a mutable pointer to (a clone of) the argument.

Parameters

name
The name of the parameter.

Returns

The argument, or NULL if name is invalid.

template< class T>

const T* mi::​neuraylib::​IMdl_function_call::get_argument( const char* name) const [inline]

Returns the argument for a parameter.

Note:

The method mi::neuraylib::IFactory::clone() is useful to obtain a mutable pointer to (a clone of) the argument.

This templated member function is a wrapper of the non-template variant for the user's convenience. It eliminates the need to call mi::base::IInterface::get_interface( const Uuid &) on the returned pointer, since the return type already is a pointer to the type T specified as template parameter.

Parameters

name
The name of the parameter.

Returns

The argument, or NULL if name is invalid.

virtual const char* mi::​neuraylib::​IMdl_function_call::get_argument_type( Uint32 index) const [pure virtual]

Returns the type of the argument at index. The type of a given argument is an attachable of the corresponding parameter type. For example, if get_parameter_type() returns "Sint32", this method returns "Attachable<Sint32>".

If a literal 0 is passed for index, the call is ambiguous. You need to explicitly cast the value to mi::Uint32.

Parameters

index
The index of the argument.

Returns

The argument type, or NULL if index is out of range.

virtual const char* mi::​neuraylib::​IMdl_function_call::get_argument_type( const char* name) const [pure virtual]

Returns the type of an argument. The type of a given argument is an attachable of the corresponding parameter type. For example, if get_parameter_type() returns "Sint32", this method returns "Attachable<Sint32>".

Parameters

name
The name of the argument.

Returns

The argument type, or NULL if name is invalid.

virtual const char* mi::​neuraylib::​IMdl_function_call::get_function_definition() const [pure virtual]

Returns the DB name of the corresponding function definition. The type of the function definition is mi::neuraylib::IMdl_function_definition.

Returns

The DB name of the function definition.

virtual const char* mi::​neuraylib::​IMdl_function_call::get_name() const [pure virtual]

Returns the MDL name of the corresponding function definition.

Note:

The MDL name of the function definition is different from the name of the DB element. Use mi::neuraylib::IMdl_compiler::name_of() to obtain the name of the DB element.

Returns

The MDL name of the function definition.

virtual Uint32 mi::​neuraylib::​IMdl_function_call::get_parameter_count() const [pure virtual]

Returns the number of parameters.

Returns

The number of function parameters.

virtual Sint32 mi::​neuraylib::​IMdl_function_call::get_parameter_index( const char* name) const [pure virtual]

Returns the index position of a parameter.

Parameters

name
The name of the parameter.

Returns

The index of the parameter, or -1 if name is invalid.

virtual const char* mi::​neuraylib::​IMdl_function_call::get_parameter_name( Uint32 index) const [pure virtual]

Returns the name of the parameter at index.

Parameters

index
The index of the parameter.

Returns

The name of the parameter, or NULL if index is out of range.

virtual const char* mi::​neuraylib::​IMdl_function_call::get_parameter_type( Uint32 index) const [pure virtual]

Returns the type of the parameter at index. If a literal 0 is passed for index, the call is ambiguous. You need to explicitly cast the value to mi::Uint32.

Parameters

index
The index of the parameter.

Returns

The parameter type, or NULL if index is out of range.

virtual const char* mi::​neuraylib::​IMdl_function_call::get_parameter_type( const char* name) const [pure virtual]

Returns the type of a parameter.

Parameters

name
The name of the parameter.

Returns

The parameter type, or NULL if name is invalid.

virtual const char* mi::​neuraylib::​IMdl_function_call::get_return_type() const [pure virtual]

Returns the return type.

Returns

The return type of the function.

virtual bool mi::​neuraylib::​IMdl_function_call::is_parameter_type_uniform( Uint32 index) const [pure virtual]

Indicates whether the type of a parameter is uniform.

Parameters

index
The index of the parameter.

Returns

true if the parameter is uniform, otherwise false (including invalid index ).

virtual bool mi::​neuraylib::​IMdl_function_call::is_parameter_type_uniform( const char* name) const [pure virtual]

Indicates whether the type of a parameter is uniform.

Parameters

name
The name of the parameter.

Returns

true if the parameter is uniform, otherwise false (including invalid name ).

virtual bool mi::​neuraylib::​IMdl_function_call::is_return_type_varying() const [pure virtual]

Indicates whether the return type is varying.

Returns

true if the return type is varying, otherwise false .

virtual Sint32 mi::​neuraylib::​IMdl_function_call::set_argument( Uint32 index, const IAttachable* value) [pure virtual]

Sets the argument at index.

Parameters

index
The index of the argument.
value
The argument. Note that the value is copied; passing a value obtained from another MDL interface does not create a link between both instances.

Returns

  • 0: Success.
  • -1: Invalid parameters (NULL pointer).
  • -2: Parameter index does not exist.
  • -3: Type of parameter does not match.
  • -4: The function call is immutable (because it appears in a default of a function or material definition).
  • -5: The parameter type is uniform, but the attachment has a varying return type.
virtual Sint32 mi::​neuraylib::​IMdl_function_call::set_argument( const char* name, const IAttachable* value) [pure virtual]

Sets the argument for a parameter.

Parameters

name
The name of the parameter.
value
The argument. Note that the value is copied; passing a value obtained from another MDL interface does not create a link between both instances.

Returns

  • 0: Success.
  • -1: Invalid parameters (NULL pointer).
  • -2: Parameter name does not exist.
  • -3: Type of parameter does not match.
  • -4: The function call is immutable (because it appears in a default of a function or material definition).
  • -5: The parameter type is uniform, but the attachment has a varying return type.
virtual Sint32 mi::​neuraylib::​IMdl_function_call::set_arguments( const IAttribute_container* arguments) [pure virtual]

Sets the arguments of multiple parameters.

Parameters

arguments
The arguments. Note that the values are copied; passing an attribute container obtained from another MDL interface does not create a link between both instances.

Returns

  • 0: Success.
  • -1: Invalid parameters (NULL pointer).
  • -2: One of the parameters in arguments does not exist.
  • -3: The type of one of the parameters does not match.
  • -4: The function call is immutable (because it appears in a default of a function or material definition).
  • -5: One of the parameter types is uniform, but the corresponding attachment has a varying return type.
